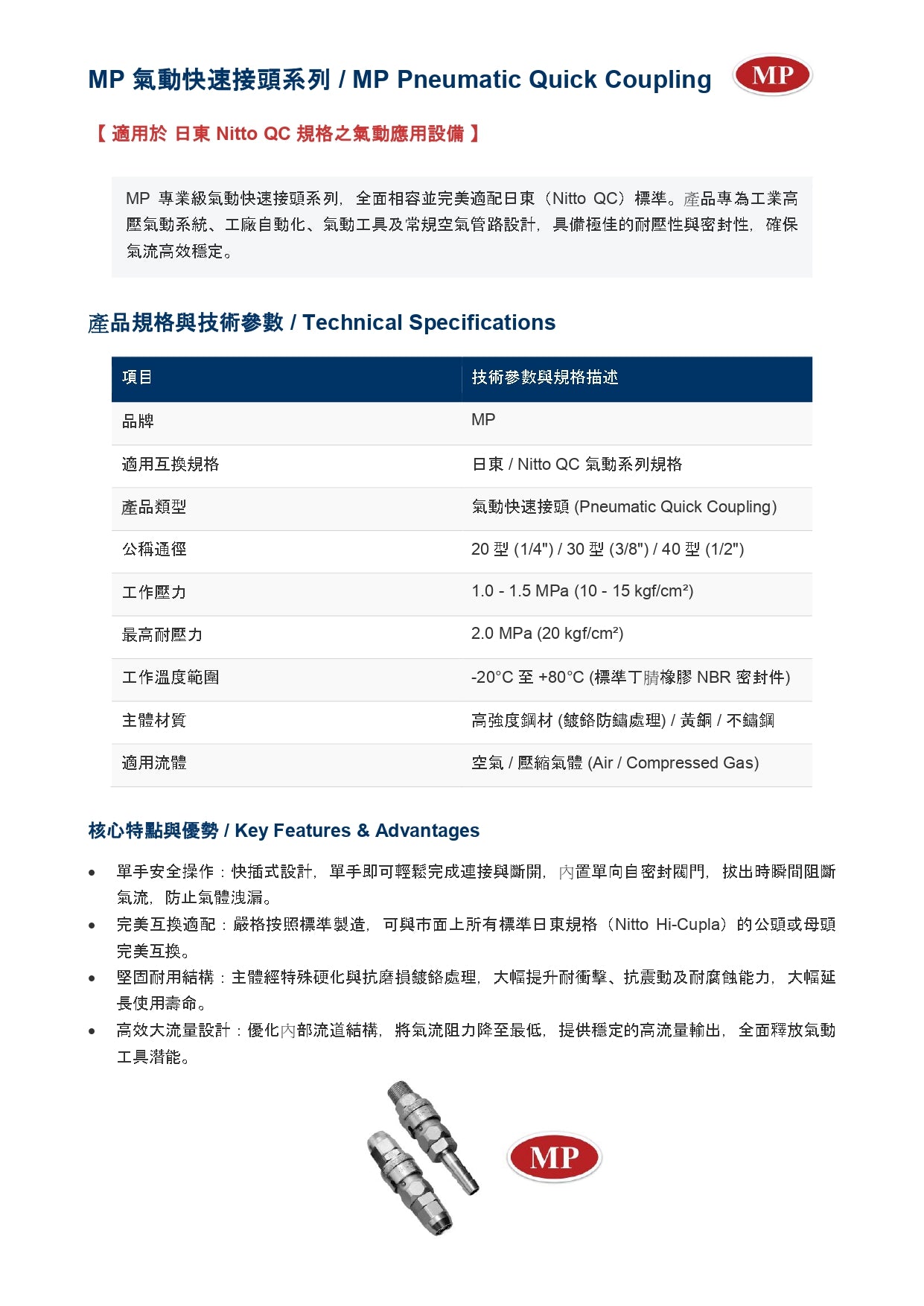

MP Pneumatic Quick Coupling / 氣動快速接頭系列
MP Pneumatic Quick Coupling / 氣動快速接頭系列
【 適用於 日東 Nitto QC 規格之氣動應用設備 】
|
MP 專業級氣動快速接頭系列，全面相容並完美適配日東（Nitto QC）標準。產品專為工業高壓氣動系統、工廠自動化、氣動工具及常規空氣管路設計，具備極佳的耐壓性與密封性，確保氣流高效穩定。 |
產品規格與技術參數 / Technical Specifications
|
項目 |
技術參數與規格描述 |
|
品牌 |
MP |
|
適用互換規格 |
日東 / Nitto QC 氣動系列規格 |
|
產品類型 |
氣動快速接頭 (Pneumatic Quick Coupling) |
|
公稱通徑 |
20型 (1/4") / 30型 (3/8") / 40型 (1/2") |
|
工作壓力 |
1.0 - 1.5 MPa (10 - 15 kgf/cm²) |
|
最高耐壓力 |
2.0 MPa (20 kgf/cm²) |
|
工作溫度範圍 |
-20°C 至 +80°C (標準丁腈橡膠 NBR 密封件) |
|
主體材質 |
高強度鋼材 (鍍鉻防鏽處理) / 黃銅 / 不鏽鋼 |
|
適用流體 |
空氣 / 壓縮氣體 (Air / Compressed Gas) |
核心特點與優勢 / Key Features & Advantages
· 單手安全操作：快插式設計，單手即可輕鬆完成連接與斷開，內置單向自密封閥門，拔出時瞬間阻斷氣流，防止氣體洩漏。
· 完美互換適配：嚴格按照標準製造，可與市面上所有標準日東規格（Nitto Hi-Cupla）的公頭或母頭完美互換。
· 堅固耐用結構：主體經特殊硬化與抗磨損鍍鉻處理，大幅提升耐衝擊、抗震動及耐腐蝕能力，大幅延長使用壽命。
. 高效大流量設計：優化內部流道結構，將氣流阻力降至最低，提供穩定的高流量輸出，全面釋放氣動工具潛能。

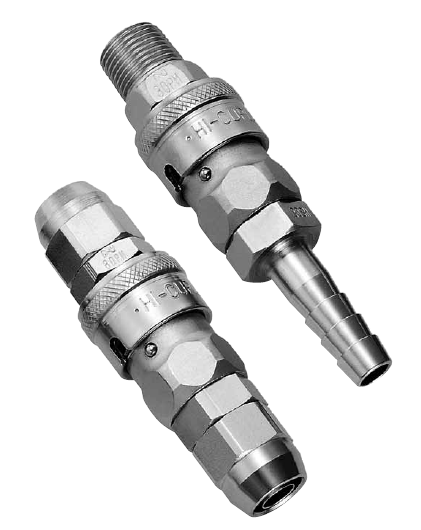

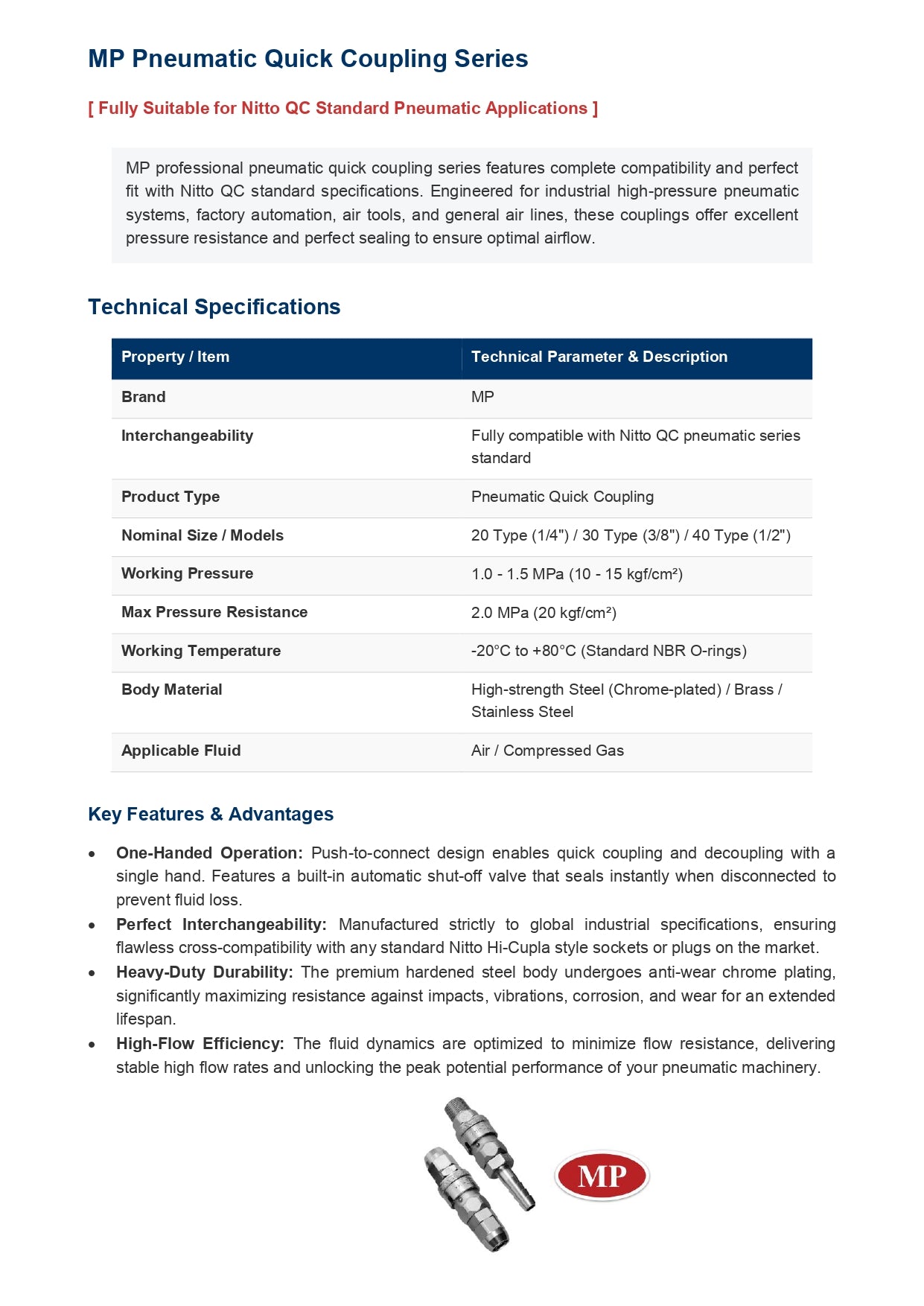

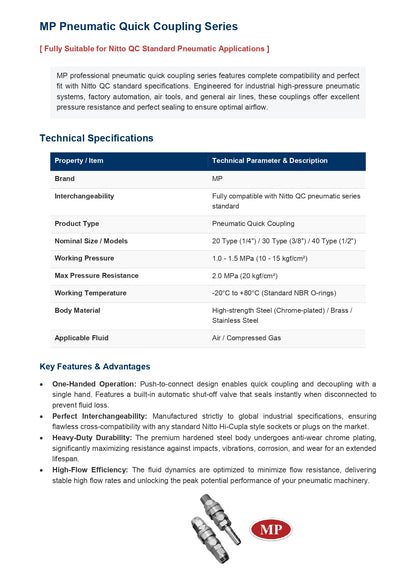

MP Pneumatic Quick Coupling Series
[ Fully Suitable for Nitto QC Standard Pneumatic Applications ]
|
MP professional pneumatic quick coupling series features complete compatibility and perfect fit with Nitto QC standard specifications. Engineered for industrial high-pressure pneumatic systems, factory automation, air tools, and general air lines, these couplings offer excellent pressure resistance and perfect sealing to ensure optimal airflow. |
Technical Specifications
|
Property / Item |
Technical Parameter & Description |
|
Brand |
MP |
|
Interchangeability |
Fully compatible with Nitto QC pneumatic series standard |
|
Product Type |
Pneumatic Quick Coupling |
|
Nominal Size / Models |
20 Type (1/4") / 30 Type (3/8") / 40 Type (1/2") |
|
Working Pressure |
1.0 - 1.5 MPa (10 - 15 kgf/cm²) |
|
Max Pressure Resistance |
2.0 MPa (20 kgf/cm²) |
|
Working Temperature |
-20°C to +80°C (Standard NBR O-rings) |
|
Body Material |
High-strength Steel (Chrome-plated) / Brass / Stainless Steel |
|
Applicable Fluid |
Air / Compressed Gas |
Key Features & Advantages
· One-Handed Operation: Push-to-connect design enables quick coupling and decoupling with a single hand. Features a built-in automatic shut-off valve that seals instantly when disconnected to prevent fluid loss.
· Perfect Interchangeability: Manufactured strictly to global industrial specifications, ensuring flawless cross-compatibility with any standard Nitto Hi-Cupla style sockets or plugs on the market.
· Heavy-Duty Durability: The premium hardened steel body undergoes anti-wear chrome plating, significantly maximizing resistance against impacts, vibrations, corrosion, and wear for an extended lifespan.
. High-Flow Efficiency: The fluid dynamics are optimized to minimize flow resistance, delivering stable high flow rates and unlocking the peak potential performance of your pneu
