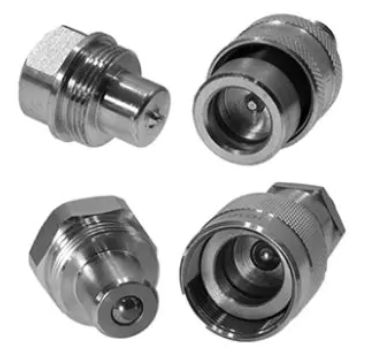

Holmbury’s PSP Series screw to connect couplings are designed primarily for high pressure applications. They can be connected under low residual system pressures.
The couplings are available with ball or poppet style valves. Holmbury 的 PSP 系列螺釘連接接頭主要設計用於高壓應用。 它們可以在低殘餘系統壓力下連接。 聯軸器可配備球閥或提升閥。
Applications 產品用途 -High pressure applications (Up to 720 bar (10440 psi) for PSB; and, 1000 bar (14500 psi) for PSP) 高壓應用 (PSB 高達 720 bar (10440 psi)； PSP 高達 1000 bar (14500 psi)) -General industrial, construction plant, mobile equipment, demolition and agricultural industries 一般工業、建築設備、移動設備、拆除 和農業行業 -Hydraulic jacks 液壓千斤頂 -Torque wrenches 扭力扳手
FEATURES 產品特徵 -Screw connect design eliminates brinelling 螺紋連接設計消除了壓痕 -PSP offers poppet style valve PSP 提供提升式閥 -PSB offers ball style valve PSB 提供球閥 -Can be connected with low residual pressure in the hydraulic circuit 可連接液壓迴路中的低殘壓 -Bidirectional flow 雙向流動
Materials 物料 -Carbon steel with trivalent plating 三價鍍層碳鋼
-Fitted with Polyurethane & Nitrile seals 配有聚氨酯和丁腈橡膠密封件
