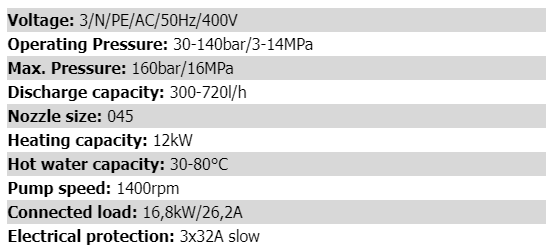

Voltage: 3/N/PE/AC/50Hz/400V
Operating Pressure: 30-140bar/3-14MPa
Max. Pressure: 160bar/16MPa
Discharge capacity: 300-720l/h
Nozzle size: 045
Heating capacity: 12kW
Hot water capacity: 30-80°C
Pump speed: 1400rpm
Connected load: 16,8kW/26,2A
Electrical protection: 3x32A slow
- Water-Supply separation acc. DIN EN 1717 class 4
- Chemical supply in high-pressure Jet c/w Metering-valve

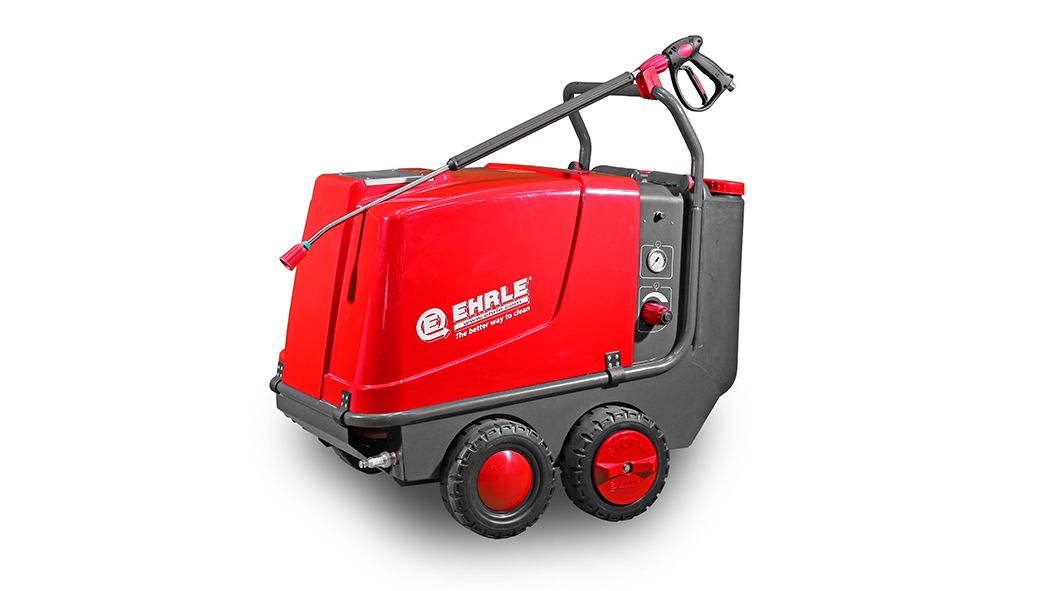

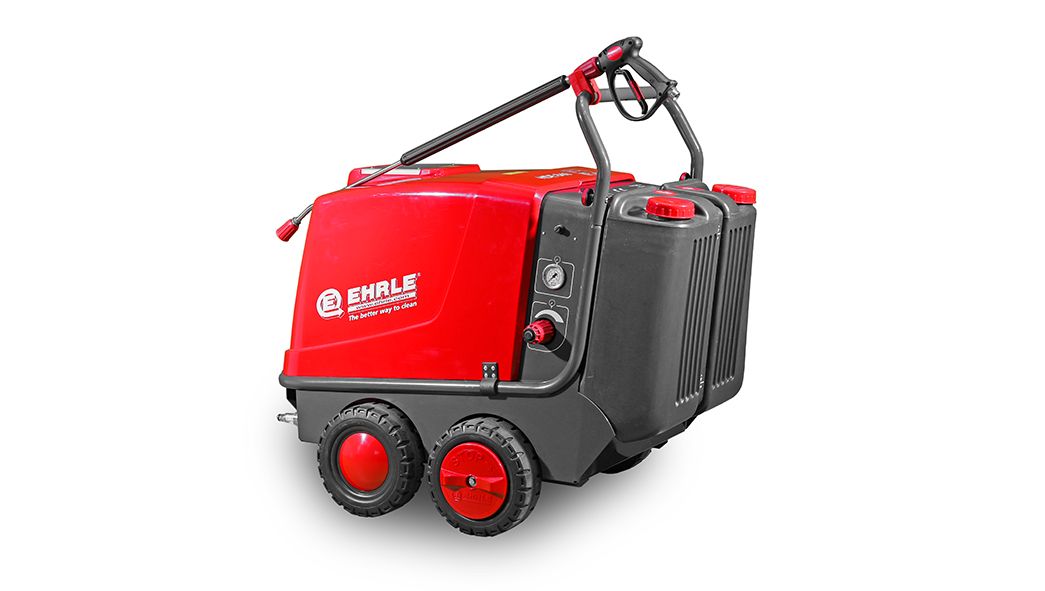

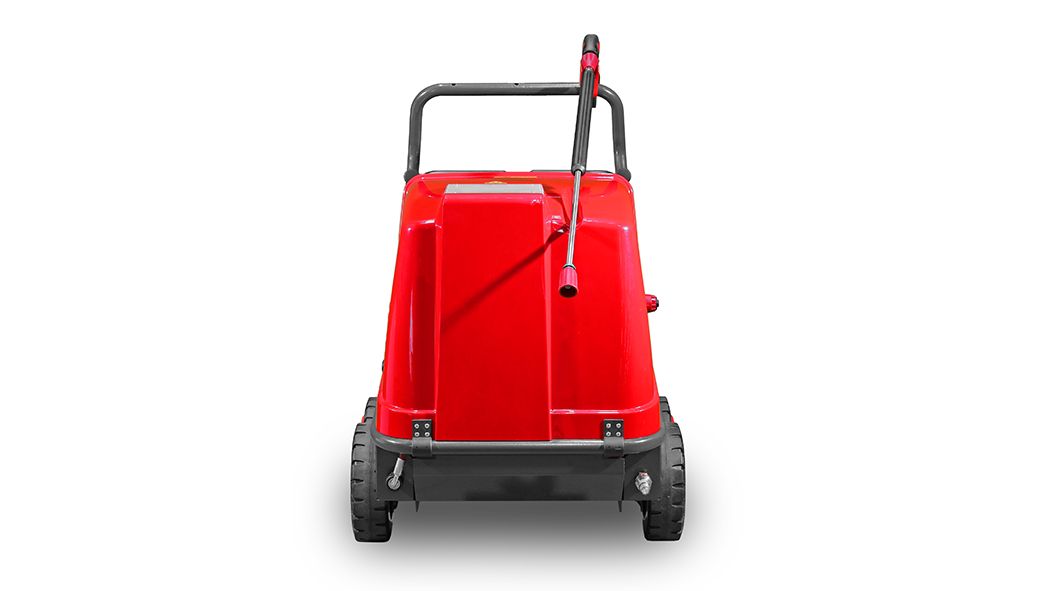

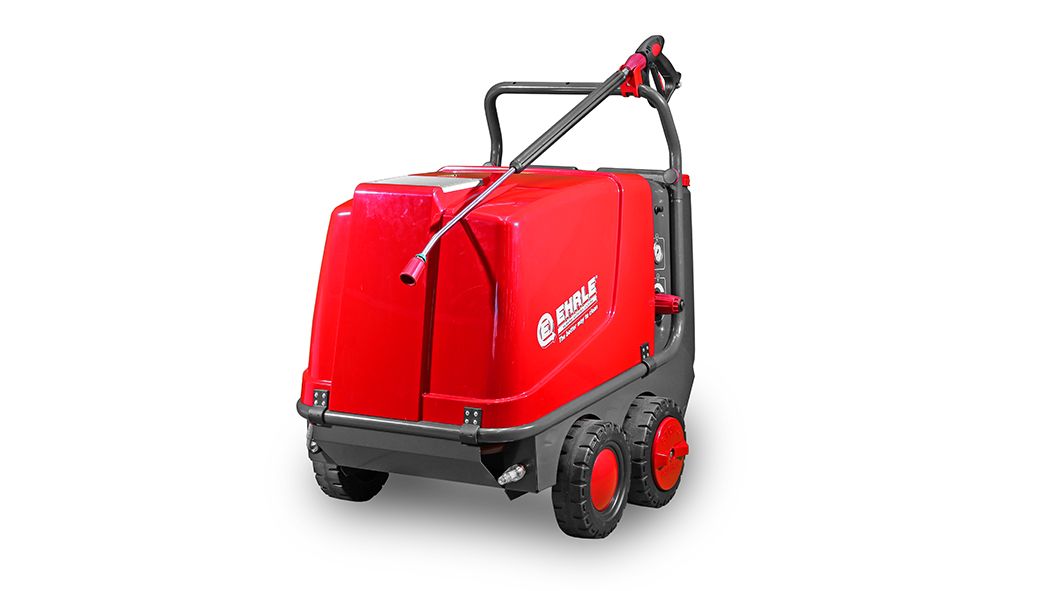

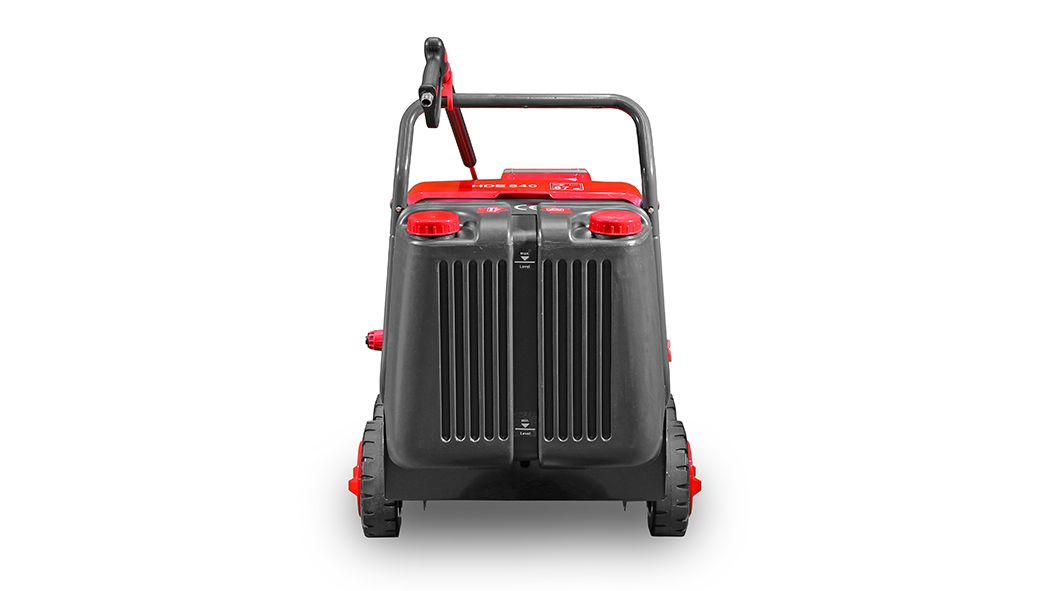

Robust, corrosion-resistant, self-supporting device chassis, impact-resistant device-cover made of ABS, stainless-steel hotwater-boiler with 65l capacity with pre-heating and buff er storage for immediate hot-water use and hot-water preparation during stand-by operation, triplex-piston pump with chrome nickel pump head (hot-water resistant), high-performance ceramic piston, stainless-steel valves, leakage-return, Etronic I - controls: (start-stop system with switch-off delay, stand-by system for heating, low-water cut-off ), unloader safety-valve c/w Infi nitely variable pressure and quantity re- gulation, 4 large rubber wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, 2 integrated detergent- tank with 20l capacity, 2-stage rotary on-off switch with stand-by function, 7,5m connection cable, removable ergonomic drawbar.
