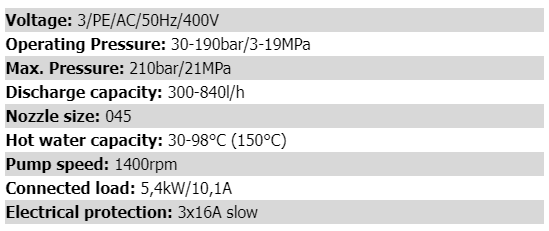

Voltage: 3/PE/AC/50Hz/400V
Operating Pressure: 30-190bar/3-19MPa
Max. Pressure: 210bar/21MPa
Discharge capacity: 300-840l/h
Nozzle size: 045
Hot water capacity: 30-98°C (150°C)
Pump speed: 1400rpm
Connected load: 5,4kW/10,1A
Electrical protection: 3x16A slow
- Water-Supply separation acc. DIN EN 1717 class 4
- Chemical supply in high-pressure Jet c/w Metering-valve

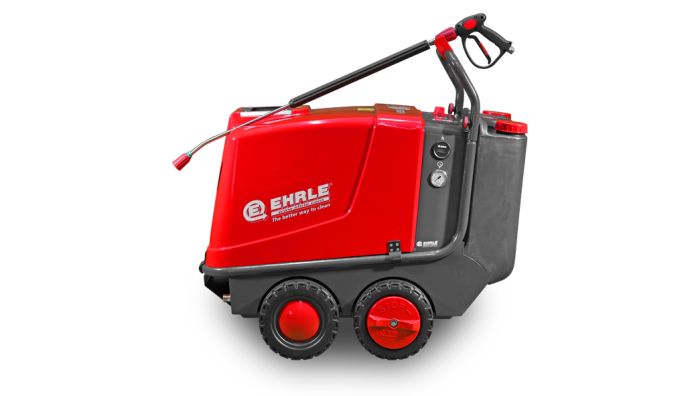

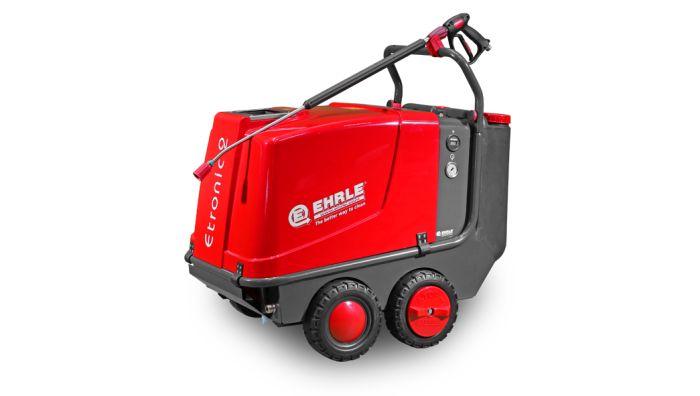

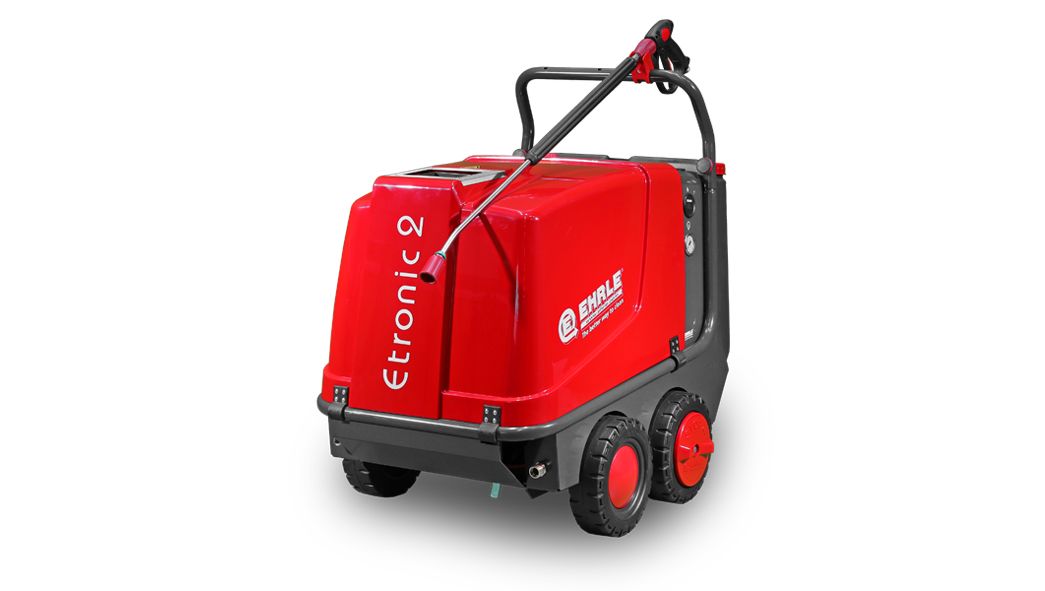

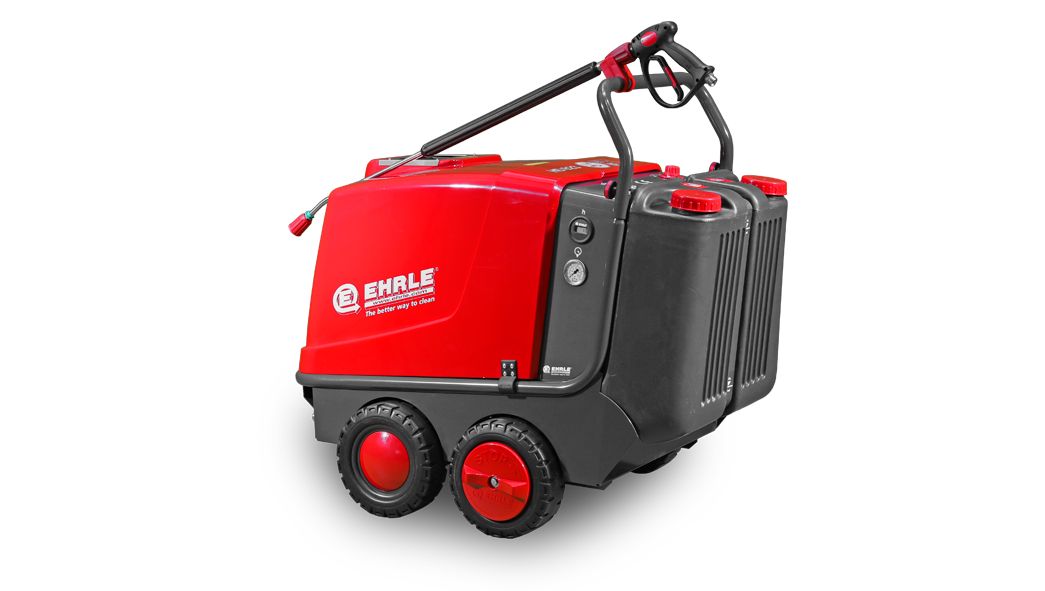

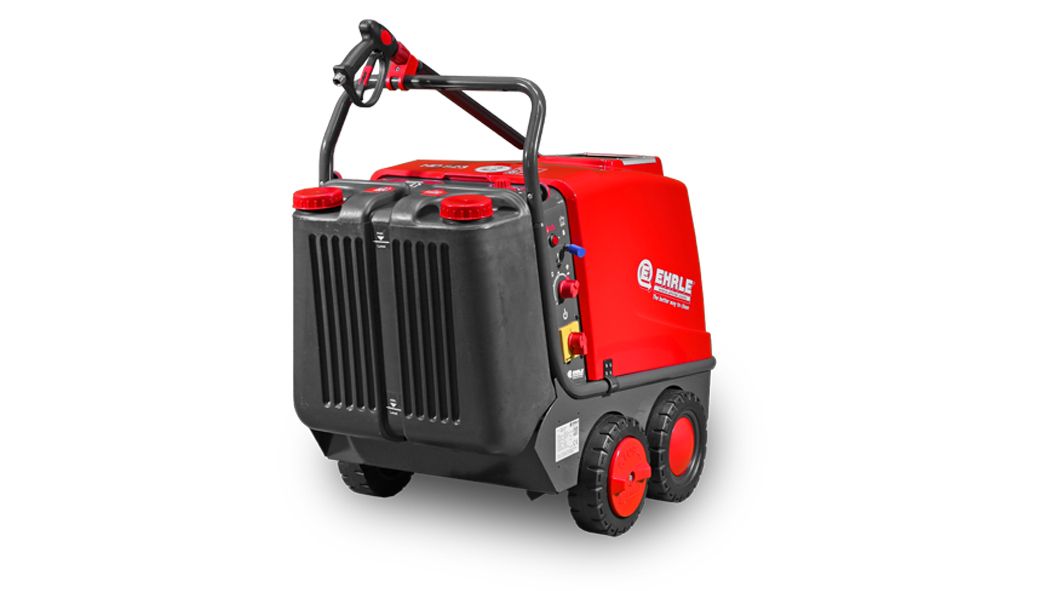

Robust, corrosion-resistant, self-supporting device chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass pump head, nickel pla- ted, high-performance ceramic piston, stainless-steel valves, leakage-return, Etronic II - controls: (Start-stop system with switch-off delay, total-switch-off after 20min, OPH-counter with service information, low-water cut-off , low-fuel cut-off , optical fl ame monitoring with photoelectric cell and fault indicator-light, steam-stage) 2 motors system (independent of the direction of rotation) separately for H.P.Pump and heating, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 4 large rubber wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, integ- rated diesel-tank 25l, integrated detergent-tank 20l, robust rotary on-off switch, 7,5m connection cable, removable ergonomic drawbar.
