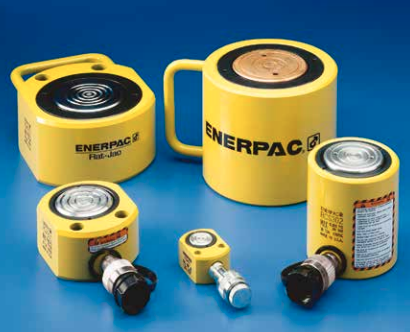

Enerpac RSM, RCS-Series low height Cylinder
Enerpac RSM, RCS-Series low height Cylinder
Regular price
$0.00 HKD
Regular price
Sale price
$0.00 HKD
Unit price
/
per
Shipping calculated at checkout.
The Enerpac RSM and RCS-Series low-height hydraulic cylinders feature a compact, single-acting, spring-return design built for tight spaces, offering 5 to 150 tons of capacity with a maximum operating pressure of 700 bar.
Key Specifications
Capacity Range: 5 to 150 tons
Stroke Length: 6 to 62 mm (0.25 to 2.44 inches)
Max Pressure: 700 bar (10,000 psi)
Operation: Single-acting, spring return
Series Design Differences
RSM-Series (Flat-Jac®): Ultra-flat design with exterior mounting holes and grooved plunger ends requiring no saddle.
RCS-Series: Low profile with threaded plunger holes to install optional tilt saddles for added flexibility
Construction and Features
Material: High-strength alloy steel with a baked enamel finish for rust and wear resistance.
Plunger: Hard chrome-plated steel to prevent corrosion.
Wiper Seal: Built-in plunger wiper reduces dirt contamination to extend tool life.
Coupler: Standard CR-400 high-flow female coupler and dust cap included.
