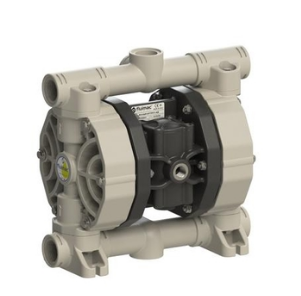

P120 - Diaphragm Pump

  • Fluid connections: 1” BSP
  • Air connection: 3/8” BSP

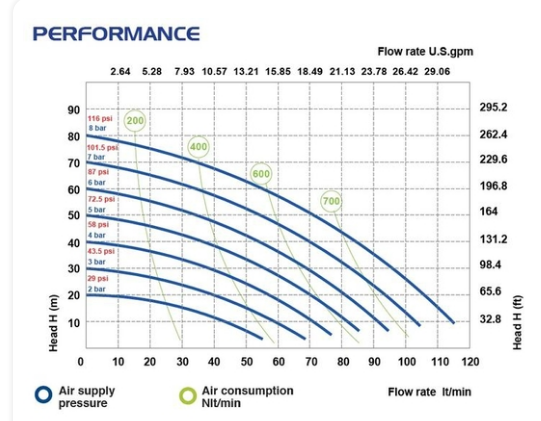

  • Max flow-rate: 120 lt/min
  • Max air pressure: 8 bar
  • Max delivery head: 80 m
  • Max Suction Lift Dry: 5 m


  • Max Suction Lift Wet: 9,8 m
  • Max Solid passing: 4 mm
  • Noise level: 72 dB
  • Max Viscosity: 25.000 cps
  • Displacement per stroke: 200 CC~
