P55 - Diaphragm Pump

P55 - Diaphragm Pump

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

P55 - Diaphragm Pump

  • Fluid connections: 1/2” BSP
  • Air connection: 1/4” BSP

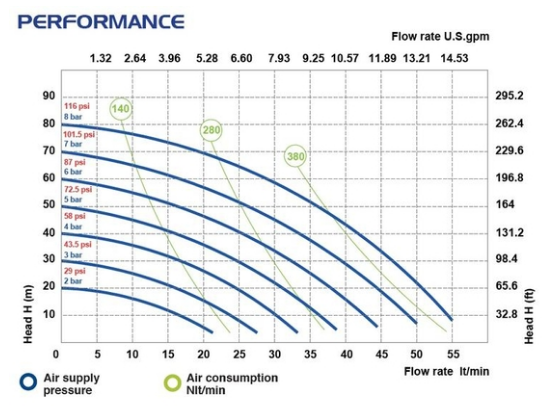

  • Max flow-rate: 55 lt/min
  • Max air pressure: 8 bar
  • Max delivery head: 80 m
  • Max Suction Lift Dry: 5 m


  • Max Suction Lift Wet: 9,8 m
  • Max Solid passing: 3,5 mm
  • Noise level: 70 dB
  • Max Viscosity: 20.000 cps
  • Displacement per stroke: 140 CC~
