Pressure gauges with Bourdon tube without / with glycerine filling

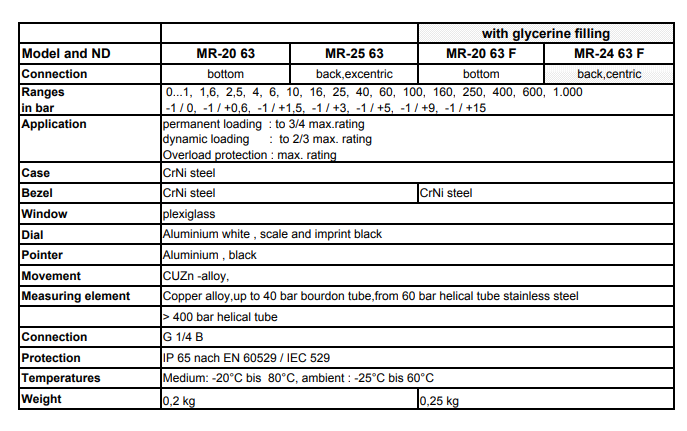

Nominal size NG 63

Accuracy class 1,6

According to DIN EN 837-1

Features : High dynamic loads, Rugged construction

Applications Food industrie, Plant construction ,Chemical industry,Mining, General Machine construction, with glycerine filling : Compressors, Pumps, Hydraulics
