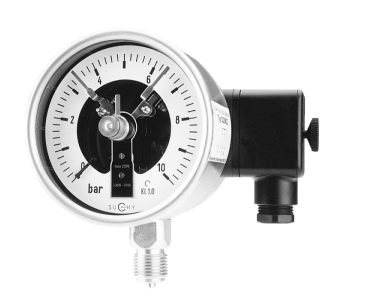

Standard system contact pressure gauges for the chemical industry

with or without dampening

Nominal size ND 100

Accuracy class 1,0

According to DIN EN 837-1

Features: Modular construction system ensures

high reliability and long service life

Measuring system stainless steel 1.4571

Protection to IP 65

Liquid dampening provides vibration-free display

Applications :Process engineering

Mechanical engineering and plant construction

Water treatment Food industry
