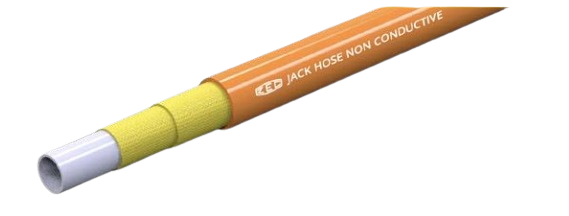

ZEC Thermoplastic Test Point Jack Hose - Non-Conductive

ZEC Thermoplastic Test Point Jack Hose

Non-Conductive - Waterproof Cover

Origin: Italy

Main Features:

• Dynamic pressure up to 700 bar with safety ratio 1:4
• MSHA (IC-332/06)
• Non conductive solution

Technical Features:

•    Technical-constructive features:
Inner core made of thermoplastic polyester, reinforcement of
Aramid fiber braid and exterior covering in orange antiabrasion
polyether polyurethane, UV-stabilized and microorganismsresistant.
•    Working temperatures:
From - 40°C to +100°C (-40°F to 212°F)
Max. working temperature of air, water and water-based fluids is
+70°C (+158°F).
•    Vacuum rating:
0.93 bar; 700 mm Hg
•    Working pressures:
Safety ratio 1:4
•    Specifications:
Compliant to SAE J517 §21.4.1 with leakage currents low than
50 μA if subjected to 250.000 V/m tension.
MSHA (IC-332/06).
