ZEC Thermoplastic Test Point Jack Hose - Dynamic Pressure

ZEC Thermoplastic Test Point Jack Hose

Dynamic Pressure - Waterproof Cover

Main Features

• Dynamic pressure 700 bar with safety ratio 1:4
• MSHA (IC-332/06) compliant
• Excellent abrasion and hydrolysis resistance
• High flexibility and low weight

Technical Features

• Technical-constructive features:

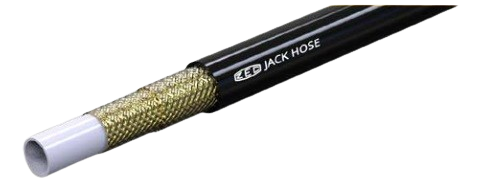

Inner core made of polyamide, reinforcement of Aramid fiber and
high tensile steel braid and exterior cover made of polyurethane,
resistant to hydrolysis and stabilized for outdoor applications,
pinpricked on request for the conduction of air and compatible
gases.
• Working temperatures:
From -40°C to +100°C (-40°F to 212°F)
Max. working temperature with air, water and water-based fluids
is +70°C (+158°F).
• Vacuum rating:
0.93 bar; 700 mm Hg
• Working pressures:
Safety ratio 1:4
# Safety ratio 1:3.42
• Specifications:
Hoses meet or exceed, MSHA (IC-332/06) standards, DNV type
approval.
